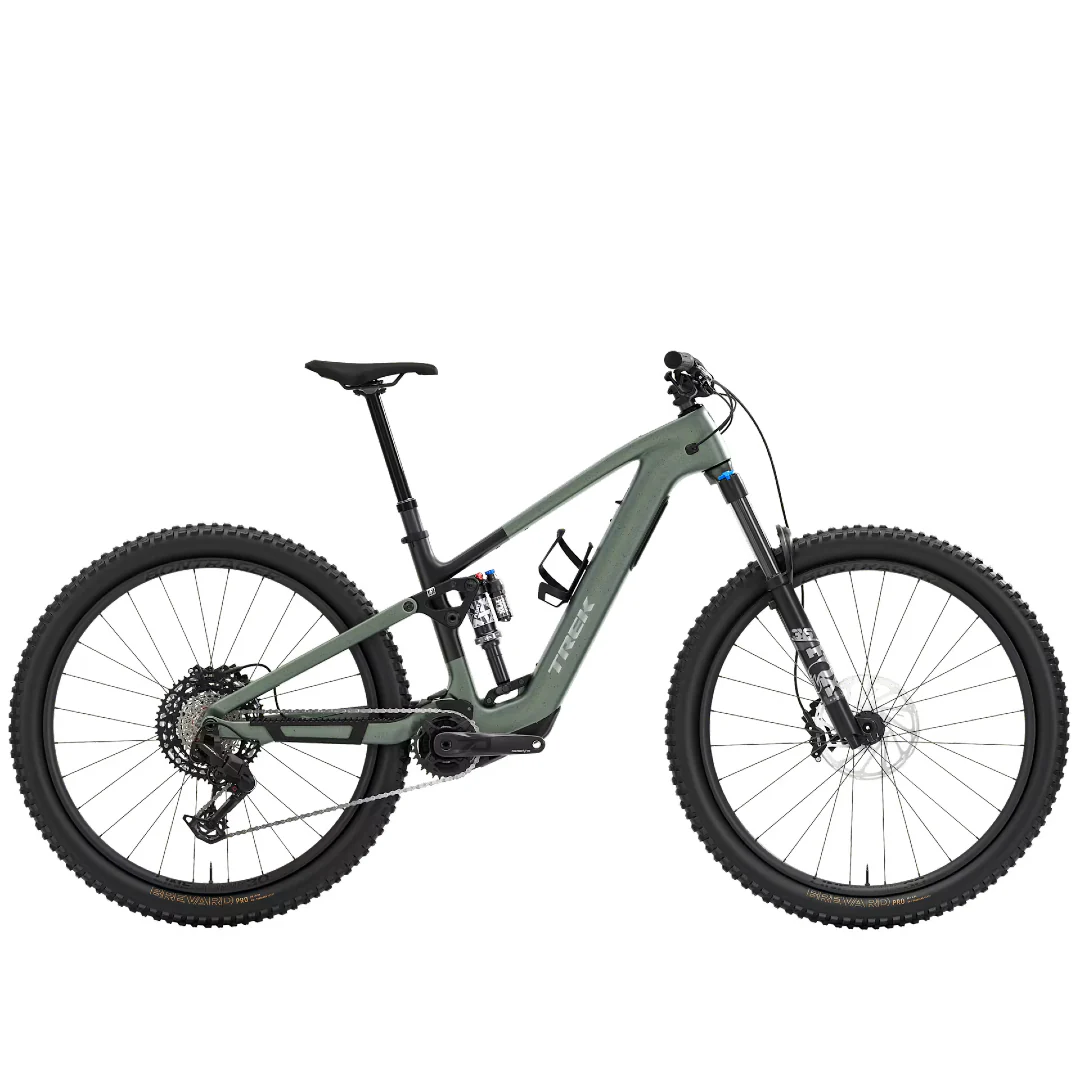

Fuel+ EX 9.7 Gen 2

Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.

Specifications

Frame	OCLV Mountain Carbon; Removable Battery; Angle-Adjust Headset; Adjustable Leverage Rate; Guided Internal Routing; Interchangeable Alloy Rocker Links; Interchangeable Lower Shock Mount; Downtube Guard; Shuttle Guard; ABP Suspension; UDH; Boost 148; Adaptable Travel (145–160 mm)
Fork	Fox Rhythm 36; Float EVOL Air Spring; GRIP Damper; Tapered Steerer; 44 mm Offset; Boost 110; 15 mm Kabolt X Axle; 150 mm Travel

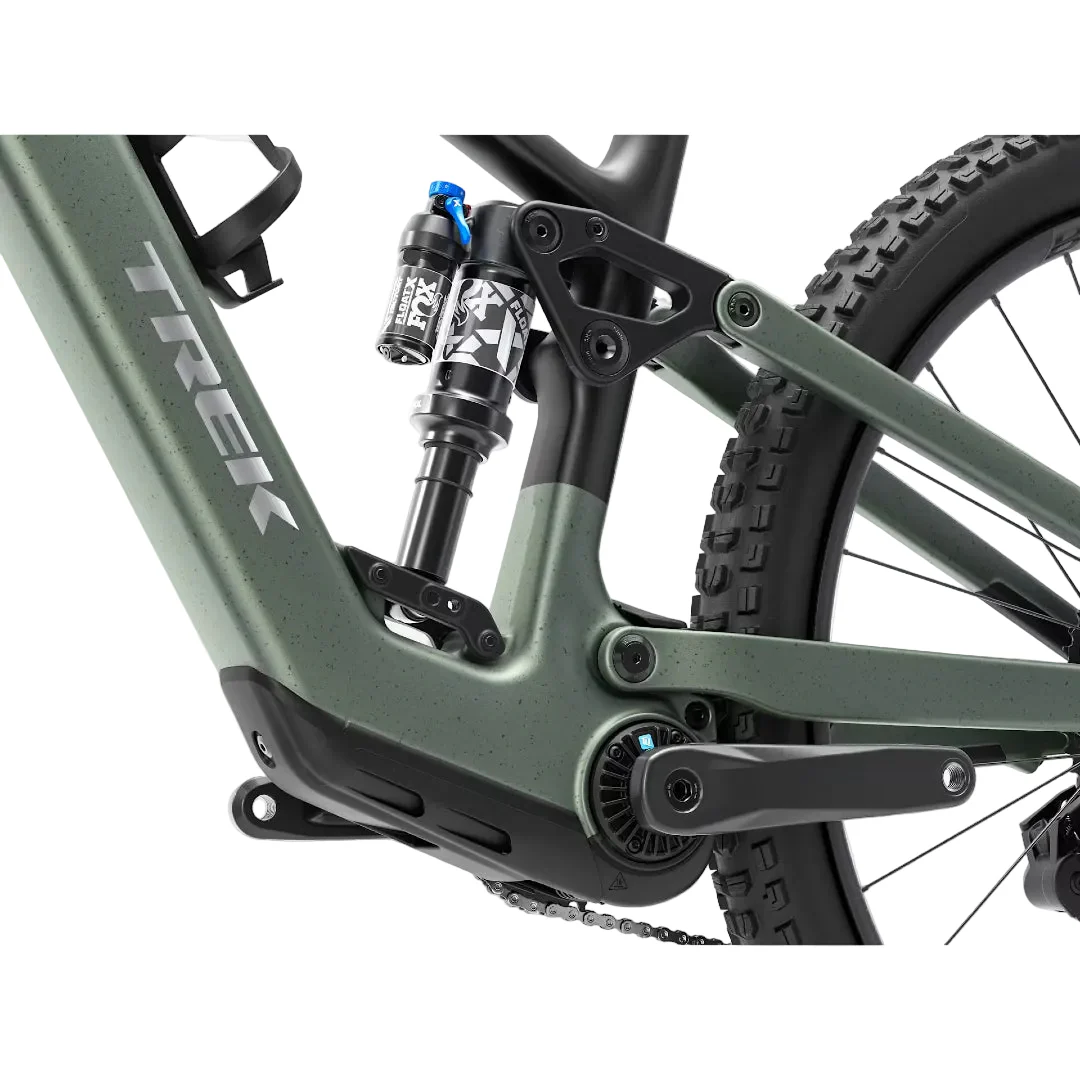

Rear Shock	Fox Performance Float X; 2-Position Damper; 205 × 60 mm
Front Hub	Bontrager Alloy; Sealed Bearings; Alloy Axle; 6-Bolt; Boost 110; 15 mm Thru-Axle
Rear Hub	Bontrager Alloy; Sealed Bearings; 6-Bolt; Rapid Drive 108; Shimano Freehub; Boost 148; 12 mm Thru-Axle
Rear Thru-Axle	Bontrager Switch Thru-Axle with Removable Lever
Rims	Bontrager Line TLR 30; Tubeless Ready; 28-Hole; Presta Valve
Front & Rear Tires	Size S: Bontrager Brevard Pro XR, 27.5 × 2.50"; Sizes S–XXL: Bontrager Brevard Pro XR, 29 × 2.50"; Tubeless Ready; Dual Compound; Aramid Bead; 60 TPI
Tubeless Setup	Bontrager TLR Sealant (180 ml / 6 oz); Bontrager TLR Rim Strip
Maximum Tire Size	Frame: 29 × 2.50"; Fork: Per Manufacturer Specifications
Battery	TQ 580 Wh
Charger	TQ 4A Charger
Display / Computer	TQ LED Display with Bluetooth & ANT+ Connectivity
Motor	TQ HPR60; 60 Nm Torque; 250 W Continuous Rated Power; 350 W Peak Power
E-Bike Classification	Class 1
Shifter	SRAM Eagle 70; 12-Speed
Rear Derailleur	SRAM Eagle 70 T-Type
Crankset	SRAM Eagle 70; 160 mm Length
Chainring	SRAM T-Type; 32T Alloy
Cassette	SRAM Eagle XS-1270 T-Type; 10–52T; 12-Speed
Chain	SRAM Eagle 70 T-Type; 12-Speed
Maximum Chainring Size	1x Drivetrain: Maximum 34T; Minimum 30T
Saddle	Bontrager Verse P3; Chromoly Rails
Seatpost	Bontrager Line Dropper; Internal Routing; MaxFlow; 34.9 mm Diameter; S: 150 mm Travel (410 mm Length); M: 170 mm Travel (450 mm Length); L/XL/XXL: 200 mm Travel (515 mm Length)
Handlebar	Race Face Turbine Alloy; 35 mm Clamp; 40 mm Rise; 780 mm Width
Grips	Trek Line Elite; Lock-On
Stem	Bontrager Elite; 35 mm Clamp; 0° Rise; 45 mm Length
Headset	FSA Orbit; Sealed Cartridge Bearings; 1-1/8" Upper; 1.5" Lower; 1.5 Crown
Brakes	SRAM DB8; 4-Piston Hydraulic Disc
Brake Rotors	SRAM CenterLine 2.0; 6-Bolt; 200 mm
Maximum Rotor Size	Frame: Maximum 203 mm (Minimum 180 mm); Fork: Per Manufacturer Specifications
Weight	19.73 kg (43.5 lb), Size Medium, with TLR Sealant and No Tubes
Maximum System Weight	136 kg (300 lb), Including Bicycle, Rider, and Cargo
